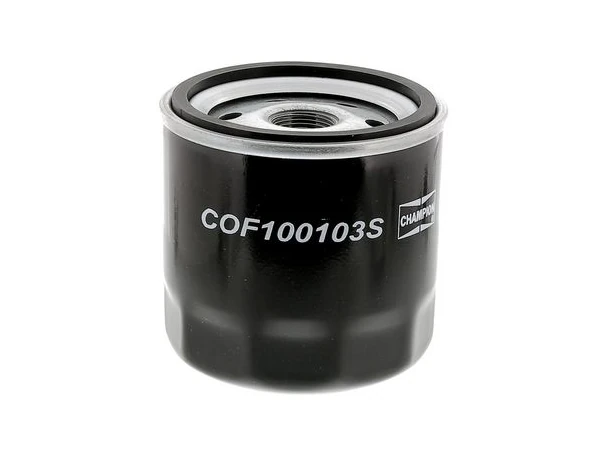

Champion COF100103S Filtro Olio Spin-on per Ford Transit, Focus, Fiesta e Tourneo

Il filtro olio Champion COF100103S è un ricambio del tipo Spin-on Filter, progettato per le applicazioni riportate nella presente scheda. Le dimensioni sono pari a 96 mm di altezza e 93 mm di diametro esterno, mentre la connessione utilizza una filettatura M22 x 1,5.

La configurazione comprende una valvola anti-ritorno, indicata anche come Anti-Drain Valve, e una valvola by-pass. Questi elementi fanno parte delle specifiche costruttive dichiarate per il filtro e devono essere considerati, insieme a misure, filettatura e codice OE, durante la verifica del ricambio.

Caratteristiche e vantaggi del Champion COF100103S

La presenza della valvola anti-ritorno e della valvola by-pass rende il Champion COF100103S conforme alla configurazione prevista per numerose applicazioni Ford diesel. L’ampia disponibilità di codici OE e riferimenti equivalenti consente inoltre di confrontare il filtro installato con prodotti Bosch, Mahle, Mann-Filter, Purflux, UFI, Tecnocar, Filtron e altri marchi.

A chi è consigliato

Il Champion COF100103S è indicato per officine, autoriparatori, manutentori e privati che devono sostituire il filtro olio su specifiche versioni di Ford Fiesta, Focus, Tourneo Connect, Transit, Transit Connect e Transit Tourneo, oltre ad alcune versioni LDV Convoy e Metrocab Taxi. Prima dell’acquisto è sempre consigliato confrontare il codice OE, la motorizzazione, l’anno di produzione e la filettatura.

Perché acquistarlo da noi

Una scheda completa con misure, caratteristiche costruttive, riferimenti OE, codici equivalenti e applicazioni veicolo permette di individuare il ricambio con maggiore precisione. Verifica la compatibilità del Champion COF100103S, acquista online e approfitta della spedizione rapida.

Caratteristiche tecniche

• Marca: Champion – Codice: COF100103S
• Prodotto: Filtro olio
• Tipo filtro: Spin-on Filter
• Altezza: 96 mm
• Diametro esterno: 93 mm
• Filettatura: M22 x 1,5
• Valvola anti-ritorno: sì
• Versione: con Anti-Drain Valve
• Versione: con valvola By-Pass

Riferimenti OE

• FORD: 1059 924, 1136 568, 1148 703, 1207 066, 1207066, 1231 233, 1322152, 1641187, 4M5Q6714BA, 5022955, 6119196, 6184942, 6203 126, 844F6714A1A, 914 F 6714 A, 914 F 6714 AA, 914F6714A
• GENERAL MOTORS: 93156291
• PEUGEOT: 1109H4

Cross Reference

• ACDelco: X154
• ALCO FILTER: SP-938
• BLUE PRINT: ADF122111
• BOSCH: 0 451 103 252
• CHAMPION: E103/606
• CLEAN FILTERS: DO 879, DO812
• COMLINE: EOF021
• COOPERS: Z789
• CROSLAND: 2121
• CoopersFiaam: FT5053A
• DENCKERMANN: A210012
• EUROREPAR: 1682281180, E149146
• FEBI BILSTEIN: 27129
• FI.BA: F-548
• FIL FILTER: ZP 592 A
• FILTRON: OP 543, OP543
• FORD: 1059 924, 1136 568, 1148 703, 1207 066, 1207066, 1231 233, 1322152, 1641187, 4M5Q6714BA, 5022955, 6119196, 6184942, 6203 126, 844F6714A1A, 914 F 6714 A, 914 F 6714 AA, 914F6714A
• FRAM: PH4553A
• GENERAL MOTORS: 93156291
• HENGST FILTER: H10W10
• JAPANPARTS: NA
• KNECHT: OC 232
• KSH EUROPE: 1801.0081019
• MAGNETI MARELLI: 152071758765, 154096417470, 359002300030
• MAHLE: OC 232
• MANN-FILTER: W 9050
• MECAFILTER: ELH4161
• MFILTER: TF 309
• MISFAT: Z280
• Motorcraft: EFL256, EFL386
• PEUGEOT: 1109H4
• PURFLUX: LS785A
• PUROLATOR: L37230
• SIVENTO: S20111
• SOFIMA: 9330R, S 3280 R, S3280R
• SogefiPro: FT5053, FT5053A
• TECNECO FILTERS: OL339, OL531
• TECNOCAR: R 339, R259, R531
• TJ FILTERS: FB5462
• UFI: 23.226.00, 23.280.00
• VAICO: V25-0062
• VALEO: 586006
• WILMINK GROUP: WG1018375, WG1217071, WG1746677, WG1792541, WG1967129, WG2280046, WG2419379, WG2420387, WG2420557, WG2420719,
• WG2420984, WG2431242
• WIX FILTERS: WL7089

Applicazioni

• Ford Fiesta
  • FIESTA IV (JA_, JB_) 1.8 DI: 04/2000-01/2002 — 55 kW — 75 CV — 1753 cc
  • FIESTA Box Body/MPV (J5_, J3_) 1.8 DI: 09/2000-08/2003 — 55 kW — 75 CV — 1753 cc
  • FIESTA Hatchback Van (JV_) TD 1.8: 03/2000-08/2003 — 55 kW — 75 CV — 1753 cc
• Ford Focus
  • FOCUS I Turnier (DNW) 1.8 DI / TDDi: 08/1999-11/2004 — 55 kW — 75 CV — 1753 cc
  • FOCUS I Estate Van (DNW) 1.8 TDCi: 08/2002-03/2005 — 74 kW — 1753 cc
  • FOCUS I Estate Van (DNW) 1.8 TDCi: 08/2001-03/2005 — 85 kW — 1753 cc
  • FOCUS I (DAW, DBW) 1.8 DI / TDDi: 08/1999-11/2004 — 55 kW — 75 CV — 1753 cc
  • FOCUS I (DAW, DBW) 1.8 TDCi: 08/2002-11/2004 — 74 kW — 100 CV — 1753 cc
  • FOCUS I (DAW, DBW) 1.8 Turbo DI / TDDi: 10/1998-11/2004 — 66 kW — 90 CV — 1753 cc
  • FOCUS I Turnier (DNW) 1.8 TDCi: 03/2001-11/2004 — 85 kW — 115 CV — 1753 cc
  • FOCUS I Saloon (DFW) 1.8 TDCi: 03/2001-11/2004 — 85 kW — 115 CV — 1753 cc
  • FOCUS I (DAW, DBW) 1.8 TDCi: 03/2001-11/2004 — 85 kW — 115 CV — 1753 cc
  • FOCUS I Turnier (DNW) 1.8 TDCi: 08/2002-11/2004 — 74 kW — 100 CV — 1753 cc
  • FOCUS I Turnier (DNW) 1.8 Turbo DI / TDDi: 02/1999-11/2004 — 66 kW — 90 CV — 1753 cc
  • FOCUS I Saloon (DFW) 1.8 TDCi: 08/2002-11/2004 — 74 kW — 100 CV — 1753 cc
  • FOCUS I Saloon (DFW) 1.8 Turbo DI / TDDi: 02/1999-11/2004 — 66 kW — 90 CV — 1753 cc
  • FOCUS I Saloon (DFW) 1.8 Turbo DI / TDDi: 08/2001-03/2005 — 55 kW — 75 CV — 1753 cc
  • FOCUS I Estate Van (DNW) 1.8 TDDi: 08/1999-03/2005 — 55 kW — 1753 cc
  • FOCUS I Estate Van (DNW) 1.8 TDDi: 08/1998-03/2005 — 66 kW — 1753 cc
• Ford Tourneo Connect
  • TOURNEO CONNECT 1.8 TDCi / TDDi / DI: 06/2002-12/2013 — 55 kW — 75 CV — 1753 cc
  • TOURNEO CONNECT 1.8 TDCi: 08/2006-12/2013 — 81 kW — 110 CV — 1753 cc
  • TOURNEO CONNECT 1.8 TDCi: 06/2002-12/2013 — 66 kW — 90 CV — 1753 cc
• Ford Transit e Transit Tourneo
  • TRANSIT Van (E_ _) 2.5 DI: 06/1994-03/2000 — 56 kW — 76 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 DI: 05/1991-06/1994 — 51 kW — 70 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 DI: 10/1992-06/1994 — 63 kW — 85 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 DI: 06/1994-03/2000 — 51 kW — 69 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 DI: 05/1999-03/2000 — 85 kW — 116 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 TD: 05/1991-06/1994 — 74 kW — 101 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 TDI: 06/1994-03/2000 — 74 kW — 101 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 DI: 08/1991-07/1994 — 51 kW — 70 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 DI: 09/1991-07/1994 — 59 kW — 80 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 DI: 09/1991-08/1994 — 59 kW — 80 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 TD: 09/1991-08/1994 — 74 kW — 100 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 TD: 11/1992-08/1994 — 63 kW — 85 CV — 2496 cc
  • TRANSIT Van (T_ _) 2.5 D: 10/1988-09/1991 — 52 kW — 71 CV — 2496 cc
  • TRANSIT Van (T_ _) 2.5 D: 01/1986-09/1991 — 50 kW — 68 CV — 2496 cc
  • TRANSIT Bus (T_ _) 2.5 D: 12/1985-01/1989 — 50 kW — 68 CV — 2496 cc
  • TRANSIT Bus (T_ _) 2.5 D: 09/1988-09/1992 — 52 kW — 71 CV — 2496 cc
  • TRANSIT Bus (V_ _) 2.4 D: 01/1978-12/1985 — 46 kW — 63 CV — 2358 cc
  • TRANSIT Bus (V_ _) 2.5 D: 10/1983-10/1986 — 50 kW — 68 CV — 2496 cc
  • TRANSIT Platform/Chassis (T_ _) 2.5 DI: 09/1988-09/1992 — 52 kW — 71 CV — 2496 cc
  • TRANSIT Platform/Chassis (T_ _) 2.5 D: 01/1986-01/1989 — 50 kW — 68 CV — 2496 cc
  • TRANSIT Platform/Chassis (V_ _) 2.5 D: 10/1983-10/1986 — 50 kW — 68 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 DI: 05/1991-06/1994 — 59 kW — 80 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 TD: 06/1994-03/2000 — 63 kW — 85 CV — 2496 cc
  • TRANSIT Van (E_ _) 2.5 TD: 06/1994-03/2000 — 55 kW — 75 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 DI: 07/1994-03/2000 — 56 kW — 76 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 DI: 08/1997-03/2000 — 85 kW — 116 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 DI: 08/1994-03/2000 — 51 kW — 69 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 TD: 08/1994-06/2000 — 55 kW — 75 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 TD: 01/1995-03/2000 — 63 kW — 85 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 TD: 10/1992-07/1994 — 63 kW — 85 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 TD: 07/1994-03/2000 — 74 kW — 100 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 DI: 08/1994-03/2000 — 56 kW — 76 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 DI: 05/1999-03/2000 — 85 kW — 116 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 DI: 08/1994-03/2000 — 51 kW — 69 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 DI: 09/1991-08/1994 — 51 kW — 69 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 TD: 08/1994-03/2000 — 63 kW — 85 CV — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 TD: 08/1994-03/2000 — 74 kW — 101 CV — 2496 cc
  • TRANSIT TOURNEO Bus 2.5 DI: 11/1994-12/2000 — 51 kW — 69 CV — 2496 cc
  • TRANSIT TOURNEO Bus 2.5 DI: 11/1994-12/2000 — 56 kW — 76 CV — 2496 cc
  • TRANSIT TOURNEO Bus 2.5 TD: 11/1994-12/2000 — 63 kW — 85 CV — 2496 cc
  • TRANSIT TOURNEO Bus 2.5 TD: 04/1998-12/2000 — 74 kW — 100 CV — 2496 cc
  • TRANSIT Bus (V_ _) 2.4 D: 10/1983-10/1986 — 50 kW — 2496 cc
  • TRANSIT Platform/Chassis (E_ _) 2.5 TD: 08/1994-03/2000 — 55 kW — 2496 cc
  • TRANSIT Van (V_ _) 2.4 D (VVS): 01/1978-12/1985 — 46 kW — 63 CV — 2358 cc
  • TRANSIT Van (V_ _) 2.5 D (VVL): 10/1983-10/1986 — 50 kW — 68 CV — 2496 cc
  • TRANSIT Bus (E_ _) 2.5 TD: 09/1991-07/1994 — 74 kW — 100 CV — 2496 cc
  • TRANSIT TOURNEO Bus 2.4 D: 08/1994-06/2000 — 55 kW — 2496 cc
  • TRANSIT Van (T_ _) 2.5 D: 10/1985-03/1991 — 60 kW — 2496 cc
• Ford Transit Connect
  • TRANSIT CONNECT (P65_, P70_, P80_) 1.8 Di: 06/2002-12/2013 — 55 kW — 75 CV — 1753 cc
  • TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi: 06/2002-12/2013 — 66 kW — 90 CV — 1753 cc
  • TRANSIT CONNECT (P65_, P70_, P80_) 1.8 TDCi: 08/2006-12/2013 — 81 kW — 110 CV — 1753 cc
• LDV Convoy
  • CONVOY Van 2.5 DI: 10/1998-04/2009 — 56 kW — 76 CV — 2498 cc
  • CONVOY Platform/Chassis 2.5 DI: 10/1998-04/2009 — 56 kW — 76 CV — 2498 cc
  • CONVOY Platform/Chassis 2.5 TDI: 10/1998-04/2009 — 74 kW — 101 CV — 2496 cc
  • CONVOY Van 2.5 TDI: 10/1998-04/2009 — 74 kW — 101 CV — 2496 cc
• Metrocab
  • TAXI 2.5 D: 01/1991-05/2006 — 52 kW — 71 CV — 2496 cc
