Filtro olio M27x2 per trattori, macchine agricole e mezzi compatibili

Il filtro olio HIFI Filter SO10106 è una soluzione di ricambio destinata alla manutenzione di macchine e motorizzazioni compatibili con i riferimenti indicati. La configurazione prevede filettatura M27x2, diametro D1 di 95 mm e altezza H1 di 95 mm.

Il filtro è dotato di 2 valvole anti-ritorno e 1 valvola by-pass. L’ampia disponibilità di riferimenti OE e codici cross-reference permette di identificare con maggiore precisione la corrispondenza con il filtro da sostituire.

Tra i principali riferimenti figurano applicazioni e codici riconducibili a Case IH, New Holland, Claas, Iveco, John Deere, Landini, Manitou, Massey Ferguson, Caterpillar e Perkins. Prima dell’acquisto è consigliato confrontare il codice del filtro installato, il riferimento OE e le caratteristiche dimensionali.

I vantaggi del filtro olio HIFI Filter SO10106

La presenza di numerosi codici equivalenti rende il SO10106 facilmente identificabile durante la ricerca del ricambio. Le specifiche dimensionali dettagliate consentono inoltre di effettuare un controllo accurato prima dell’ordine, riducendo il rischio di acquistare un filtro non corrispondente.

Con filettatura M27x2, due valvole anti-ritorno e una valvola by-pass, il filtro presenta caratteristiche precise che possono essere confrontate direttamente con quelle del componente da sostituire.

A chi è consigliato

Il filtro olio HIFI Filter SO10106 è indicato per professionisti del settore agricolo, officine, manutentori e utilizzatori che cercano un filtro compatibile con uno dei riferimenti OE o cross-reference riportati nella scheda.

È particolarmente utile nella manutenzione di mezzi agricoli e macchinari compatibili dei marchi Case IH, New Holland, Claas, John Deere, Landini, Massey Ferguson, Manitou e degli altri costruttori associati ai codici indicati.

Perché acquistare da noi

Scegliere il ricambio corretto permette di programmare la manutenzione della macchina con maggiore semplicità. Consulta le caratteristiche tecniche e confronta i codici OE con il componente da sostituire: se il riferimento corrisponde, acquista subito HIFI Filter SO10106 e approfitta della spedizione rapida.

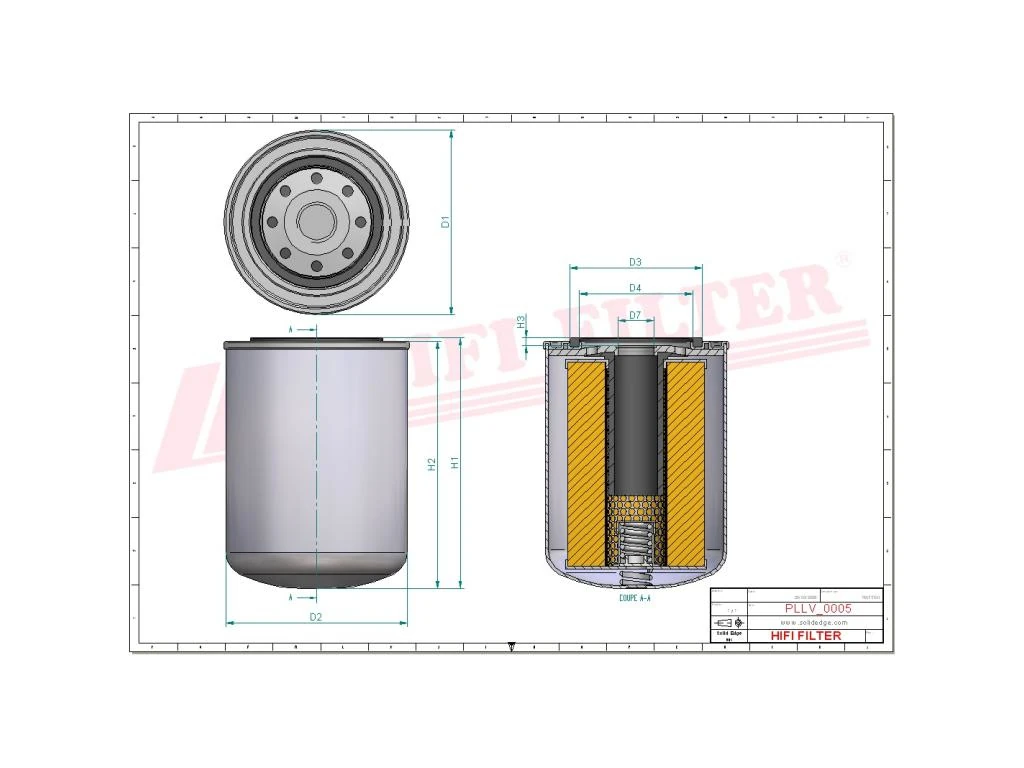

Caratteristiche tecniche

• Marca: HIFI Filter
• Codice prodotto: SO10106
• Tipologia: filtro olio
• Filettatura D7: M27x2
• D1: 95 mm
• D2: 93 mm
• D3: 70,5 mm
• H1: 95 mm
• H2: 93 mm
• H3: 7 mm
• Numero valvole anti-ritorno: 2
• Numero valvole by-pass: 1
• Gencod / EAN: 3661200399102
• Volume: 0,000922 m³

Principali riferimenti OE

• Case IH: 47535939, 48138563, 5801724485, 5802001312, 5802284013, 87679494, 87679496
• Caterpillar: 4416852
• Claas: 11392930, 1151521, 11515210, 11748960, 16003930
• Iveco: 504182581, 5802431041, 5802431043
• John Deere: ER5801724485, ER5802431043
• Landini: 6513892M3
• Manitou: 317039
• Massey Ferguson: ACP0310650
• New Holland: 50418251, 504182851, 5801724485, 87679494, 87679598
• Perkins: 4416851, 5589401

Cross-reference

• Baldwin: B7499
• Carquest: 94123
• Donaldson: P577086
• Filtros Tecfil: PSL475
• MANN-FILTER: W10050
• NAPA: 400061
• Sakura: C45030
• Sofima: S3480R, S3608R
• WIX Filters: SL10061, WL10061

Corrispondenza

• ATLAS COPCO
  QAS 60 FD S5
• BACKERS
  2-HTA
  2-HTA
• BANDIT
  990
• CARAVAGGI
  CIPO 25
  CARMIX
  CARMIX 3.5 TT
• CASE
  121 E SERIE III
  121 F
  121 F
  121 F-ZB
  21 E SERIE III
  21 F
  21 F
  221 E
  221 F
  221 F
  321 E
  321 F
  321 F
  445 SERIE III
  580 ST
  580 SV
  580 SV STV
  590 SV
  695 ST
  695 SV
  750 M-WT/LPG
  CT 420 SERIE 3
  CT 445 SERIE 3
  Farmall 100 A (MY25)
  FARMALL 100 C Hi-lo
  FARMALL 105 C
  FARMALL 105 U
  FARMALL 105 U PRO
  FARMALL 105 U PRO
  FARMALL 106 U
  Farmall 110 A (MY25)
  FARMALL 110 C Hi-lo
  FARMALL 110 U
  FARMALL 110 U
  FARMALL 115 C
  FARMALL 115 U
  FARMALL 115 U PRO
  FARMALL 115 U PRO
  FARMALL 120 C Hi-lo
  FARMALL 120 U
  FARMALL 120 U
  FARMALL 55 A
  FARMALL 55 A
  FARMALL 85 A
  FARMALL 85 A
  FARMALL 85 C
  Farmall 90 A (MY25)
  FARMALL 90 C
  FARMALL 90 C Hi-lo
  Farmall 95 A
  FARMALL 95 C
  FARMALL 95 U
  FARMALL 95 U PRO
  FARMALL 95 U PRO
  JX 60
  JX 70
  JX 80
  LUXXUM 100
  LUXXUM 110
  LUXXUM 120
  QUANTUM 100 CL (L/CAB)
  QUANTUM 100 CL-New (L/CAB)
  QUANTUM 100 CL-New (W/CAB)
  QUANTUM 100 CL (W/CAB)
  QUANTUM 100 F (L/CAB)
  QUANTUM 100 F-New (W/CAB)
  QUANTUM 100 F (W/CAB)
  QUANTUM 100 N (L/CAB)
  QUANTUM 100 N-New (W/CAB)
  QUANTUM 100 N (W/CAB)
  QUANTUM 100 V (L/CAB)
  QUANTUM 100 V-New (W/CAB)
  QUANTUM 100 V (W/CAB)
  QUANTUM 110 CL (L/CAB)
  QUANTUM 110 CL-New (L/CAB)
  QUANTUM 110 CL-New (W/CAB)
  QUANTUM 110 CL (W/CAB)
  QUANTUM 110 F (L/CAB)
  QUANTUM 110 F-New (W/CAB)
  QUANTUM 110 F (W/CAB)
  QUANTUM 110 N (L/CAB)
  QUANTUM 110 N-New (W/CAB)
  QUANTUM 110 N (W/CAB)
  QUANTUM 110 V (L/CAB)
  QUANTUM 110 V-New (W/CAB)
  QUANTUM 110 V (W/CAB)
  QUANTUM 120 CL
  QUANTUM 120 CL
  QUANTUM 120 F
  QUANTUM 120 N
  QUANTUM 120 V
  QUANTUM 65 C
  QUANTUM 65 C
  QUANTUM 65 V
  QUANTUM 75 C
  QUANTUM 75 N
  QUANTUM 75 V
  QUANTUM 80 CL (L/CAB)
  QUANTUM 80 CL-New (L/CAB)
  QUANTUM 80 CL-New (W/CAB)
  QUANTUM 80 CL (W/CAB)
  QUANTUM 80 F (L/CAB)
  QUANTUM 80 F-New (W/CAB)
  QUANTUM 80 F (W/CAB)
  QUANTUM 80 N (L/CAB)
  QUANTUM 80 N-New (W/CAB)
  QUANTUM 80 N (W/CAB)
  QUANTUM 80 V (L/CAB)
  QUANTUM 80 V-New (W/CAB)
  QUANTUM 80 V (W/CAB)
  QUANTUM 85 F
  QUANTUM 85 N
  QUANTUM 90 CL (L/CAB)
  QUANTUM 90 CL-New (L/CAB)
  QUANTUM 90 CL-New (W/CAB)
  QUANTUM 90 CL (W/CAB)
  QUANTUM 90 F (L/CAB)
  QUANTUM 90 F-New (W/CAB)
  QUANTUM 90 F (W/CAB)
  QUANTUM 90 N (L/CAB)
  QUANTUM 90 N-New (W/CAB)
  QUANTUM 90 N (W/CAB)
  QUANTUM 90 V (L/CAB)
  QUANTUM 90 V-New (W/CAB)
  QUANTUM 90 V (W/CAB)
  SR 200
  SR 210
  SR 220
  SR 250
  SR 270
  SV 250
  SV 280
  SV 300
  SV 340
  SV 340 B
  TR 270
  TR 270
  TR 270 B
  TR 310 STV
  TR 320
  TR 320
  TV 380
  TV 380
• CATERPILLAR
  313 F/LGC
  415 F2
  427 F2
  C 3.6
  CB 7
  CP 5
  CS 44 B
  CS 5
  DP 45 NB
  TH 337 B
  TH 337 B
  TH 3510 D
  TH 357 D
  TH 407 C
  TH 408 D
  TH 514 D
  TL 642 D
  TL 943 D
• CLAAS
  AXOS 3.105
  AXOS 3.110
  AXOS 3.120
  AXOS 3.95
  ELIOS 210
  ELIOS 210
  ELIOS 220
  ELIOS 230
  ELIOS 230
  ELIOS 230
  ELIOS 240
  ELIOS 240
  NEXOS 210 F
  NEXOS 2.120 M C-Matic
  NEXOS 220 F
  NEXOS 220 VE
  NEXOS 220 VL
  NEXOS 230 F
  NEXOS 230 VL
  NEXOS 240 F
  NEXOS 240 VE
  DAVINO
  DELTA 4
• ECOFORE
  CE 403 G
  EUROPOWER
  EPSR 60 TDE-5
• FARMTRAC
  675 DTN KING
  685 DT
  690 DT
  9120 DTN
• FIAT IVECO
  854E-34TA
  F32MNS
  F32SM1A
  F5AE5484B
  F5AE9484G
  F5CE0485A
  F5CE9455E
  F5DFL414C
  FINLAY
  863
• FIORI
  BF 10 T
  DB 560 T
  FPT Industrial
  F5H/FL463*F002-
  F5L/GL413G*V003
  F6B/FL413A
  FPT Powertrain
  NEF 34
  NEF 34
  NEF 36
  GENELEC
  GFW 50 T5
• GENIE
  GTH 4014
  GTH 4014
  GTH 4016 R
  GTH 4018 R
  GTH 4018 R
  GTH 5021 R
  SX-135 XC
  SX-180
• GENMAC
  QUEEN-RENT G 100 IS-M5
  GREEN POWER
  60 KVA
  GP 33
  HATTAT
  T 4100
  T 4110
  T 4115
  T 4125
• HAULOTTE
  HTL 4017
  HTL 4017
  HIMOINSA
  HRFW 100 ST5
  HRFW-60 S5 INS
• HYUNDAI
  HX 130 LCR
  JARCRAC
  EVOPRO DUAL
• JENZ
  TERRA SELECT T4
  JOHN DEERE
  5075 GF
  5075 GF
  5075 GL
  5075 GL
  5075 GN
  5075 GN
  5075 GN
  5075 GV
  5075 GV
  5080 GF
  5085 GL
  5085 GV
  5090 G
  5090 GF
  5090 GF
  5090 GH
  5090 GL
  5090 GL
  5090 GN
  5090 GN
  5090 GN
  5090 GV
  5090 GV
  5100 GL
  5100 GL
  5100 GN
  5105 GF
  5105 GF
  5105 GL
  5105 GN
  5105 GN
  5105 GV
  5115 GF
  5115 GN
  5115 GV
• KOMATSU
  SAA4/D102SE-1
  SAA4/D99 E-1
  WB 93 R-8
  WB 93 R-8E0
  WB 93 S-8
  WB 97 R-8
  WB 97 S-8
  WB 97 S-8E0
• LANDINI
  5000 HC
  5-090 H
  5-100 H
  5-100 HC
  5-100 RS
  5-100 T-Tronic
  5-110 H
  5-110 HC
  5-110 RS
  5-110 T-Tronic
  5-115 H
  5-120 RS
  5-120 T-Tronic
  LIFTER PRAMAC
  GRW 60 I
• LINDNER
  GEOTRAC 84 EP
  GEOTRAC 94 EP
  LINTRAC 110
  LINTRAC 90
  UNITRAC 102 EP
• LS
  P 7010 C
  P 7020 C
  P 7030 C
  P 7030 CPS
  PLUS 70
  PLUS 80
  PLUS 90
  XP 7102
  LS-Tractor
  MT 7.101 PS
  MT 7.115
  MT 7.84
  MT 7.94
  XP 8084
  XP 8084 CPS
  XP 8094
  XP 8094 CPS
  XP 8101
  XP 8101 CPS
  MAC CORMICK
  X 50.20
  X 50.30
  X 50.40
  X 50.50
  X 5.40
• MANITOU
  M 26/30-2+H ST3B
  M 26/30-2+H ST3B
  M 26/30-4+H ST3B
  M 26/30-4+H ST3B
  M 26-4 P ST3B
  M 26-4 P ST3B
  M 30-2P (Stage IIIB S4)
  M 30-4 ST3B
  M 30-4 ST3B
  M 40/50-2+H ST3B
  M 40/50-2+H ST3B
  M 40/50-4+H ST3B
  M 40/50-4+H ST3B
  M 50-4 ST3 B
  M 50-4 ST3 B
  MC 50-2
  MC 50-4 ST3 B
  MC 50-4 ST3 B
  MRT 1640-400 EASY ST3B
  MRT 1640-400 EASY ST3B
  MRT 1840 EASY
  MRT 1840 EASY
  MRT 1840 EASY 75P 400 ST4 S1
  MRT 2145 EASY 400 ST3B S1
  MRT 2145 EASY 400 ST3B S1
  MRT 2545 EASY T4 S2
  MSI 40 T ST3B T4F
  MSI 50 T
  MSI 50 T
  MSI 50 T
  MT 1135 100P ST4 S1
  MT 1135 ST3 B
  MT 1135 ST3 B
  MT 1335 100P ST4 S1
  MT 1335 ST3 B
  MT 1335 ST3 B
  MT 1435 EASY
  MT 1440 100P ST4 S1
  MT 1440 A 100P ST4 S1
  MT 1440 ST3 B
  MT 1840 100P ST4 S1
  MT 1840-100 ST3 B
  MT 1840 ST IV T4F CONFORT
  MT 1840 ST IV T4F CONFORT
  MT 835 H ST3 B
  MT 835 H ST3 B
  MT 835 ST3 B
  MT 835 ST3 B
  MT 932 ST3 B
• MASSEY FERGUSON
  3707
  3707 AL
  3708 AL
  3709 AL
  3 FR.75
  3 GE.105
  3 GE.75
  3 GE.95
  3 SP.105
  3 SP.115
  3 SP.75
  3 SP.85
  3 SP.95
  3 VI.105
  3 VI.115
  3 VI.75
  3 VI.85
  3 VI.95
  MF 3707 F
  MF 3707 GE
  MF 3707 S
  MF 3707 V
  MF 3707 WF
  MF 3708 F
  MF 3708 GE
  MF 3708 S
  MF 3708 V
  MF 3708 WF
  MF 3709 F
  MF 3709 GE
  MF 3709 S
  MF 3709 V
  MF 3709 WF
  MF 3710 F
  MF 3710 GE
  MF 3710 S
  MF 3710 V
  MF 3710 WF
  MC CLOSKEY INT.
  ST 100 F
• MERLO
  Roto 40.16
  Roto 40.16 S
  Roto 40.18
  Roto 40.18 S
  Roto 50.21
  Roto 50.26
• MINELLI
  M 120
• NEW HOLLAND
  65 WORKMASTER
  65 WORKMASTER
  75 WORKMASTER
  75 WORKMASTER
  B 100 C
  B 110 CTC
  B 115 C
  C 227 NH
  L 223
  L 230
  L 230
  T 4020
  T 4020
  T 4020 V
  T 4030
  T 4030
  T 4030 F
  T 4030 N
  T 4030 V
  T 4040
  T 4040
  T 4040 F
  T 4040 V
  T 4050
  T 4050 F
  T 4050 V
  T 4.100 F (L/CAB)
  T 4.100 F-New (L/CAB)
  T 4.100 F-New (W/CAB)
  T 4.100 FS-New (L/CAB)
  T 4.100 FS-New (W/CAB)
  T 4.100 F (W/CAB)
  T 4.100 LP (L/CAB)
  T 4.100 LP-New (L/CAB)
  T 4.100 LP-New (W/CAB)
  T 4.100 LP (W/CAB)
  T 4.100 N (L/CAB)
  T 4.100 N-New (L/CAB)
  T 4.100 N-New (W/CAB)
  T 4.100 N (W/CAB)
  T 4.100 V (L/CAB)
  T 4.100 V-New ( L/CAB)
  T 4.100 V-New (W/CAB)
  T 4.100 V (W/CAB)
  T 4.105
  T 4.105 F
  T 4.105 N
  T 4.105 POWERSTAR
  T 4.105 POWERSTAR
  T 4.105 PREMIUM
  T 4.105 V
  T 4.110 F (L/CAB)
  T 4.110 F-New (L/CAB)
  T 4.110 F-New (W/CAB)
  T 4.110 FS-New (L/CAB)
  T 4.110 FS-New (W/CAB)
  T 4.110 F (W/CAB)
  T 4.110 LP (L/CAB)
  T 4.110 LP-New (L/CAB)
  T 4.110 LP-New (W/CAB)
  T 4.110 LP (W/CAB)
  T 4.110 N (L/CAB)
  T 4.110 N-New (L/CAB)
  T 4.110 N-New (W/CAB)
  T 4.110 N (W/CAB)
  T 4.110 V (L/CAB)
  T 4.110 V-New (L/CAB)
  T 4.110 V-New (W/CAB)
  T 4.110 V (W/CAB)
  T 4.115 POWERSTAR
  T 4.115 POWERSTAR
  T 4.120 F
  T 4.120 F
  T 4.120 LP
  T 4.120 LP
  T 4.120 N
  T 4.120 N
  T 4.120 V
  T 4.120 V
  T 4.55 POWERSTAR
  T 4.55 POWERSTAR
  T 4.55 S
  T 4.65
  T 4.65 POWERSTAR
  T 4.65 S
  T 4.65 V
  T 4.75 (E.U → Stage IIIA)
  T 4.75 F
  T 4.75 F
  T 4.75 N
  T 4.75 N
  T 4.75 POWERSTAR
  T 4.75 POWERSTAR
  T 4.75 S
  T 4.75 V
  T 4.80 F (L/CAB)
  T 4.80 F-New (L/CAB)
  T 4.80 F-New (W/CAB)
  T 4.80 FS (L/CAB)
  T 4.80 FS (W/CAB)
  T 4.80 F (W/CAB)
  T 4.80 LP (L/CAB)
  T 4.80 LP-New (L/CAB)
  T 4.80 LP-New (W/CAB)
  T 4.80 LP (W/CAB)
  T 4.80 N (L/CAB)
  T 4.80 N-New (L/CAB)
  T 4.80 N-New (W/CAB)
  T 4.80 N (W/CAB)
  T 4.80 V (L/CAB)
  T 4.80 V-New (L/CAB)
  T 4.80 V-New (W/CAB)
  T 4.80 V (W/CAB)
  T 4.85 F
  T 4.85 POWERSTAR
  T 4.85 POWERSTAR
  T 4.85 PREMIUM
  T 4.85 V
  T 4.90 F (L/CAB)
  T 4.90 F-New (L/CAB)
  T 4.90 F-New (W/CAB)
  T 4.90 FS-New (L/CAB)
  T 4.90 FS-New (W/CAB)
  T 4.90 F (W/CAB)
  T 4.90 LP (L/CAB)
  T 4.90 LP-New (L/CAB)
  T 4.90 LP-New (W/CAB)
  T 4.90 LP (W/CAB)
  T 4.90 N-New (W/CAB)
  T 4.90 N (W/CAB)
  T 4.90 V (L/CAB)
  T 4.90 V-New (L/CAB)
  T 4.90 V-New (W/CAB)
  T 4.90 V (W/CAB)
  T 4.95 POWERSTAR
  T 4.95 POWERSTAR
  T 4.95 PREMIUM
  T 4.95 V
  T 4.95 V
  T 5.100
  T 5.100 Dual Command MY24
  T 5.100 S
  T 5.100 S MY25
  T 5.100 Utility
  T 5.105
  T 5.105
  T 5.110
  T 5.110
  T 5.110 Dual Command MY24
  T 5.110 S MY25
  T 5.110 Utility
  T 5.115
  T 5.120
  T 5.120
  T 5.120 Dual Command MY24
  T 5.120 Utility
  T 5.80 Dual Command MY24
  T 5.80 Utility
  T 5.90 Dual Command MY24
  T 5.90 S
  T 5.90 S MY25
  T 5.90 Utility
  T 5.95
  T 5.95
  TD 4020 F
  TD 4030 F
  TD 4040 E
  TD 4040 F
  TD 5010
  TD 5020
  TD 5030
  TD 5.85
  TD 5.85
  TD 5.85 TMR
  TE 6.120 N-L/H
  TE 6.150 N-L/H
  TK 4.100
  TK 4.100 M
  TK 4.110
  TK 4.110 M
  TK 4.80 F
  TK 4.80 V
  TK 4.90
  TK 4.90 M
  W 50 BTC
  W 50 C
  W 60 BTC
  W 60 C
  W 70 BTC
  W 70 C
  W 80 BTC
  W 80 C
• PALFINGER
  PCC57.002
• PERKINS
  854E-E34TA
  F5DFL414C
  F5HFL414G
  POWERSCREEN
  800 WARRIOR
• PRAMAC
  GPW 60I/FS5
  SANDVIK
  QE 241
• SAUERBURGER
  GRIP 4-110
• SELWOOD
  150 S
  S 150
• STEYR
  4065 S KOMPAKT
  4115 MULTI
  TERRA SELECT
  T 7
• URSUS
  C 385
  C 385 POWER
  C 395 POWER
• VALTRA
  F 105
  F 105 N
  F 105 S
  F 105 SL Low
  F 75
  F 75 N
  F 75 S
  F 75 SL Low
  F 85
  F 95
  F 95 N
  F 95 S Low
  F 95 ST
• WACKER NEUSON
  DW 100
  DW 60
  DW 90
  E 06-06
  ET 145
  ET 145 B
  EW 100
  SW 28
  WL 60
  WL 70
• WEIDEMANN
  4080 T
  5080 T
• ZEMMLER
  MS 4200 MULTI SCREEN
• ZEPPELIN
  ZM 110
